Chinese Architecture in Southeast Asia: Teochew Architecture

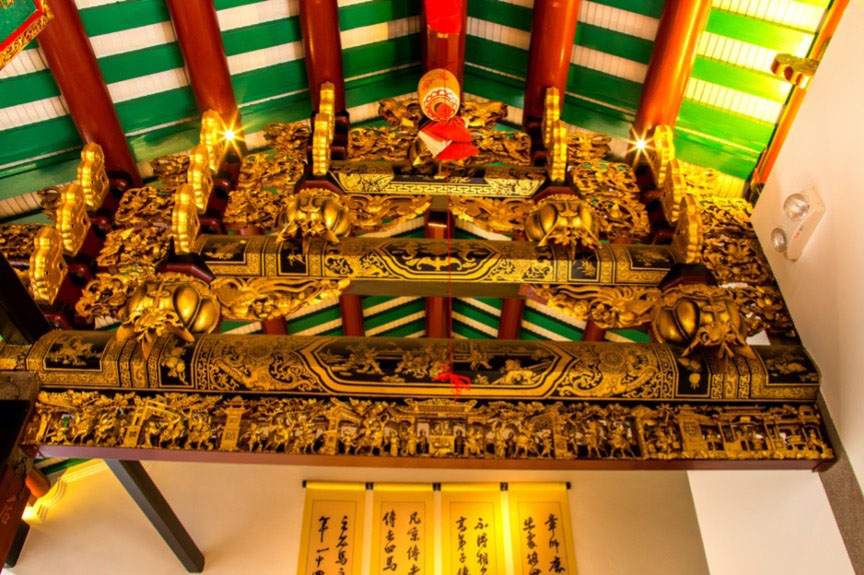

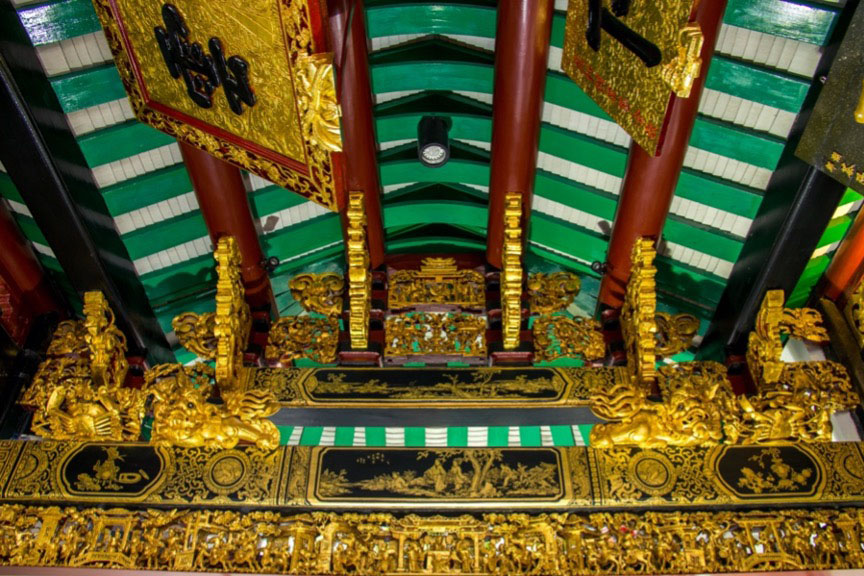

Teochew architecture bears numerous characteristics that sets it apart from the architectural styles of other regions in China. It is relatively inward-looking, with the front elevation usually devoid of windows, and it is typical to have only door openings. On the exterior, the grey clay roof tiles and white plastered walls feature prominently. This otherwise muted tone is accented by colourful ceramic shards appliqué ornamentation, or qiàncí (嵌瓷), on roof ridges with gentle curvatures. Supporting the roof tiles are rafters which are typically painted in green or blue. The timber trusses that support these rafters tend to be finished with polychromatic painting and/or gilding on a black lacquered background, while the purlins are usually in a dark shade of red. Teochew timber carving (潮州木雕), along with Dōngyáng (東陽木雕) and Huángyáng timber carving (黃楊木雕) in Zhejiang province, as well as Lóngyǎn timber carving (龍眼木雕) in Fujian province, is considered one of the four leading schools of timber carving in China. Teochew timber carvings are one of the key ornamentations featured in Teochew architecture and this can be seen especially in the truss system comprising of three successively stacked beams which are supported by five struts and supplemented by eighteen pieces of carved components (五臟內十八花坯).  Carved timber architectural components require skilled craftsmanship and Teochew artisans take pride in producing exquisite examples in high relief that are seldom seen in the architecture of other Chinese regions or communities.

When the Chinese from the southern coastal region migrated to Southeast Asia, temples are among the first form of structures to be built, and they are most certainly constructed in the likeness of the architecture from their homelands. Religious buildings often stand a higher chance of surviving developmental pressures compared to other building types. Hence, for many in Southeast Asia today, the image of Chinese architecture in this region is axiomatically linked to the Chinese temple: large, tiled roof supported by timber structural frames. Although the primary function of a temple is to house objects of public veneration such as sculptures of deities, they also serve as centres of communal self-governance for Chinese migrants. Constructed in a style that is familiar to the migrants, these temples provided both physical and emotional support for migrants searching for opportunities in foreign lands. They were a place of safe refuge and more importantly, served as bearers of cultural identity. The motifs found in architecture ornamentations, especially in temples, encompass a wide variety of types and meanings. They are drawn mostly from allegories, analogies, metaphors, folklores, and/or historic personifications as pictorial representations of Chinese values and belief systems. Similarly, the Teochew community brought with them their architecture, and their way of life to the places they migrated.

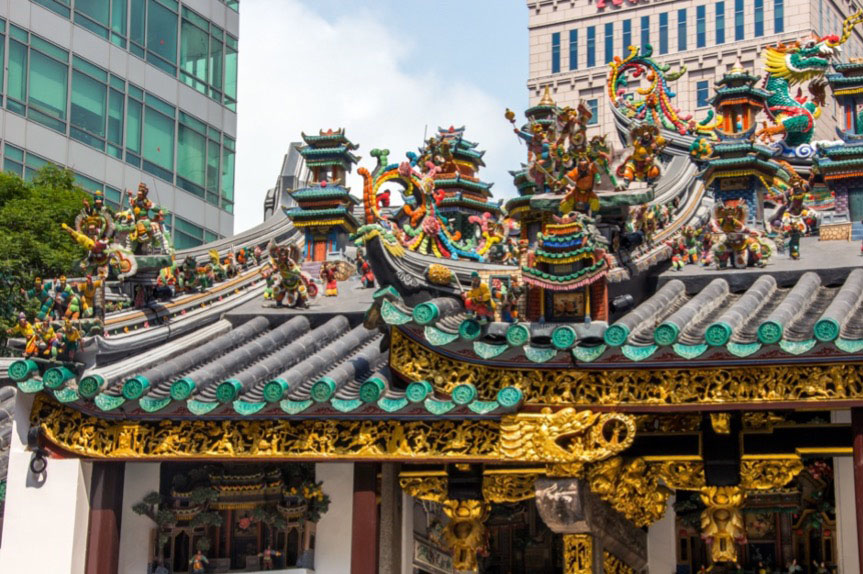

Yet, Teochew architecture in Southeast Asia did not remain static. While much of its unique architectural characteristics were preserved, evidence of adaptations and acculturation have also been observed. In the early years, this was mainly due to the constraints in the availability of skilled builders and building materials. However, these early adaptations were generally restricted to minor architectural finishes and do not impact the visual reading of the architectural style. An example is the adoption of green glazed roof eaves tiles that were manufactured in Fóshān, Guǎngdōng (佛山, 廣東), in place of the typical unglazed eaves tiles, as a means of adaptation to tropical weather conditions. In the latter half of the 20^th century, more extensive changes occurred, and this resulted in a certain degree of dilution in the Teochew characteristics of Teochew architecture in the region. This was largely due to the restrictions imposed on travels between China and the rest of the world, especially after 1949, and this lasted for decades. It resulted in the dearth of traditional architecture craftsmen from China who had previously travelled around the region to carry out works. These works then had to be taken on by local craftsmen who were not necessarily trained in the relevant trades and crafts and were not knowledgeable about the nuances in traditional architecture of specific communities which sets them apart. Practical considerations and availability of modern building materials also resulted in changes to the visual character of these traditional architecture, such as the addition of ceramic tiles, especially on internal walls, which gained popularity from the middle of the 20^th century. In general, such changes are considerably superficial and, in most instances, the timber structure has been left relatively intact. The most intrusive change to these buildings would perhaps be re-roofing works that are deemed necessary to address any issues of water leakages. The original gradient of the roof may not be adhered to, especially when newer varieties of roof tiles, usually interlocking ones, are used instead. While many of these changes were forced by circumstances, the aesthetic preference and bias of stakeholders could also be a contributing factor. For example, with the popular imagination that Chinese buildings ought to have red as the predominant colour, most Chinese architecture, including Teochew architecture started to change visually. Hence, we can hardly fault the public for thinking that stylistically, Chinese architecture in Southeast Asia is one and the same. Failure to adhere to the stylistic differences because of continuous repairs and renovations to these buildings, either by circumstance or by choice, have rendered their heterogeneous characteristics somewhat homogeneous. The heterogeneous characteristics depend on the buildings’ function, their geographic location, and the origins of their builders. The variations can be seen in the detailing of their structural frame, spatial proportions, and even the choice of finishes and colours. Since the early 2000s, several restoration projects have attempted to undo these changes, in a bid to revert the Teochew architecture to its original visual character.

Examples of Teochew Architecture in Southeast Asia

Regarding what Teochew architecture is in Southeast Asia, Teochew temples typically come to mind and would generally be thought of as representative of it. Yet, Teochew architecture is more than just temples and encompasses residential houses as well. The handful of Teochew residential architectural typology that are extant today likely contributed to this somewhat narrow concept on what Teochew architecture in Southeast Asia truly is. Most of the Teochew architecture in Southeast Asia that remains date back to the late 19^th century, although the organisations that own them are older.

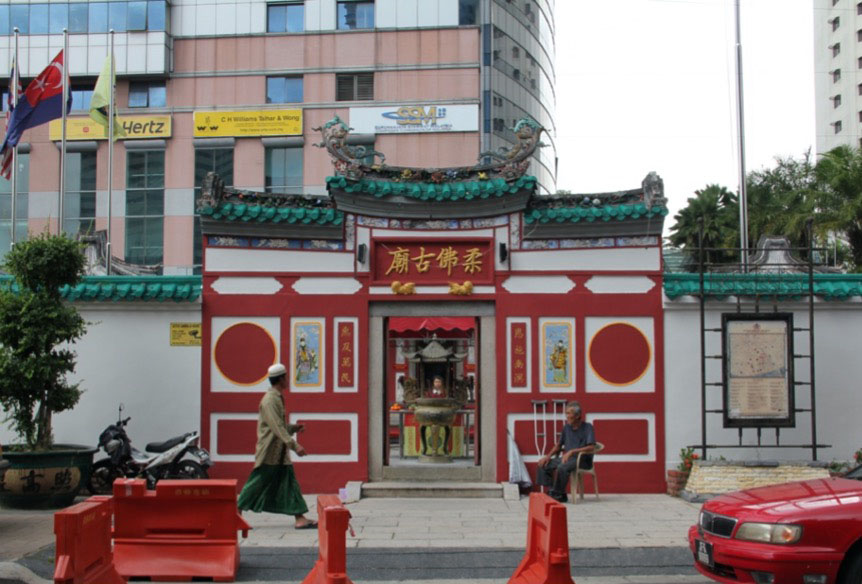

Malaysia

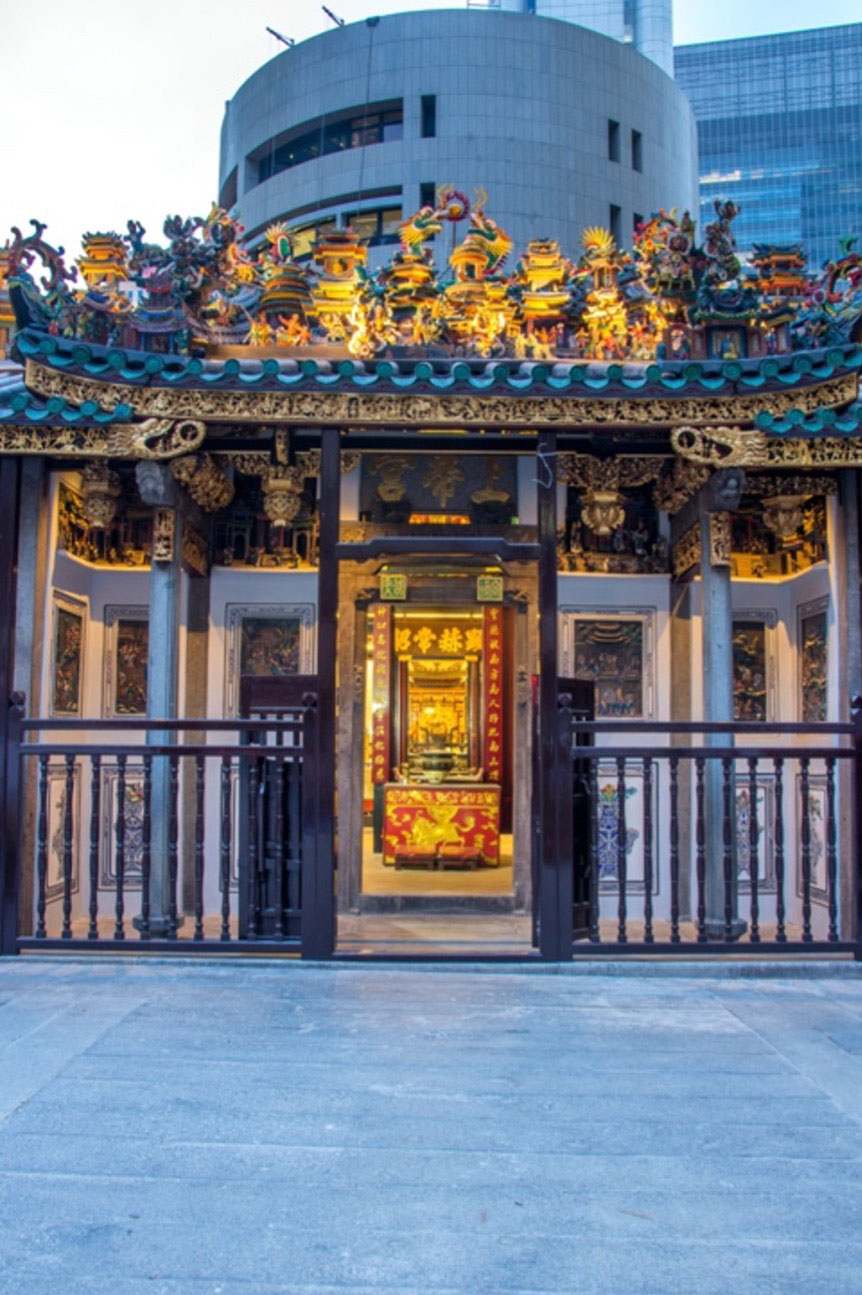

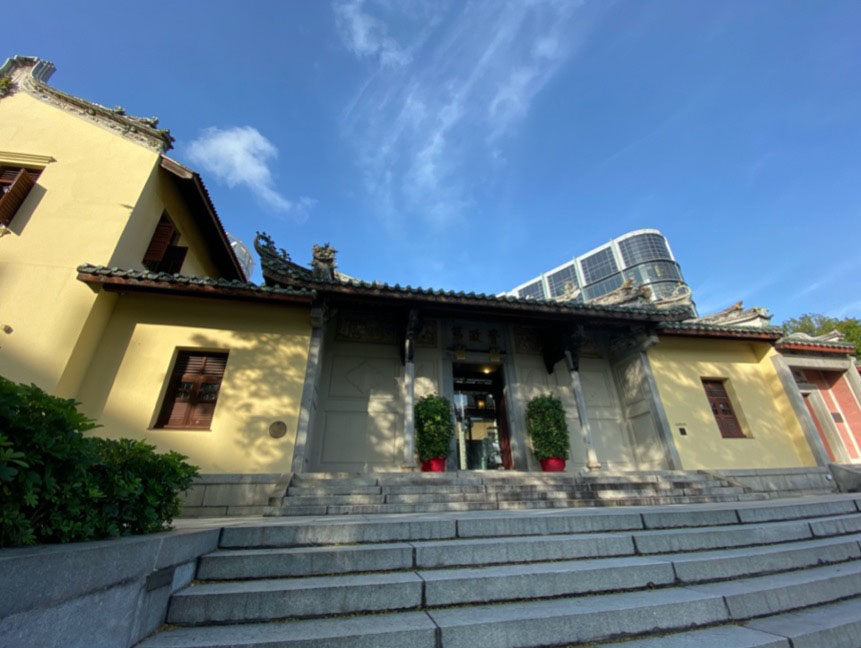

Singapore

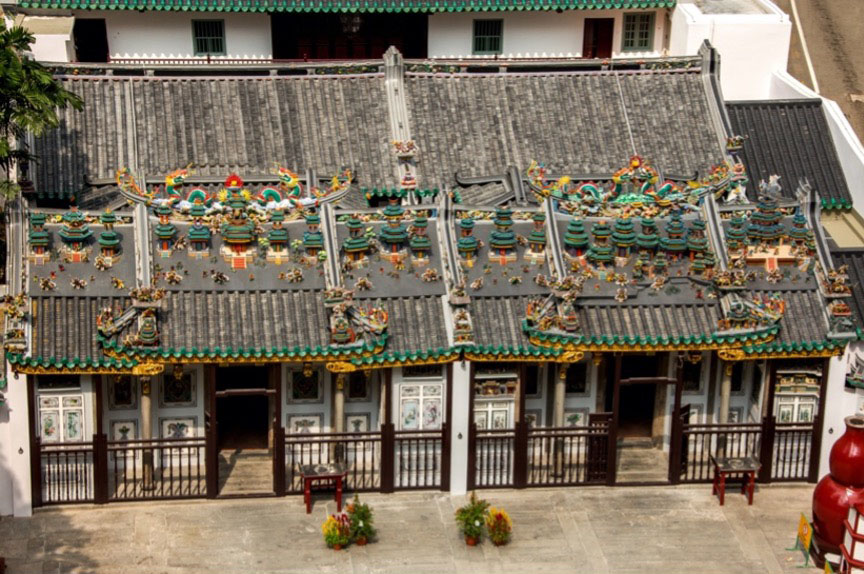

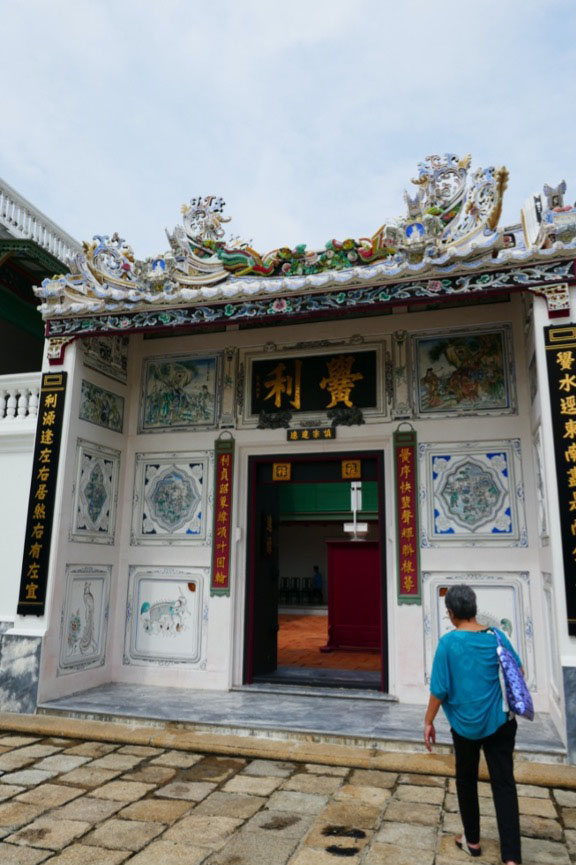

Thailand (Bangkok)

Vietnam (Ho Chi Minh City)

Teochew Architecture: Rule of Thumb

• Exterior colour scheme: Predominantly grey (roof tiles) and white (plastered walls).

• Roof curvature: Gentle curve; gentle slope (gradient).

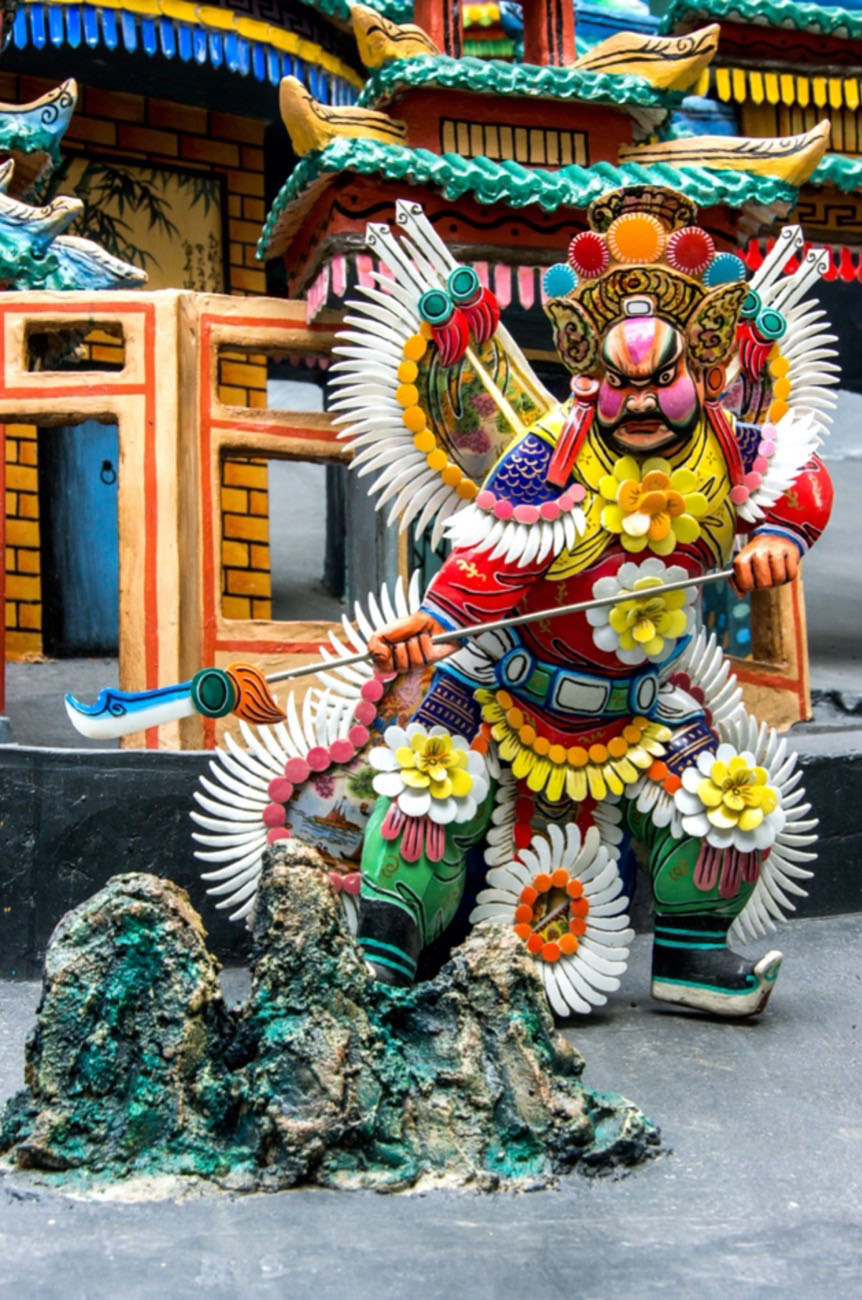

• Roof ornamentation: Ceramic shards appliqué ornamentation or qiàncí (嵌瓷).

• Roof fascia board: Feature bas-relief carvings.

• Exterior façade: Typically, no window openings.

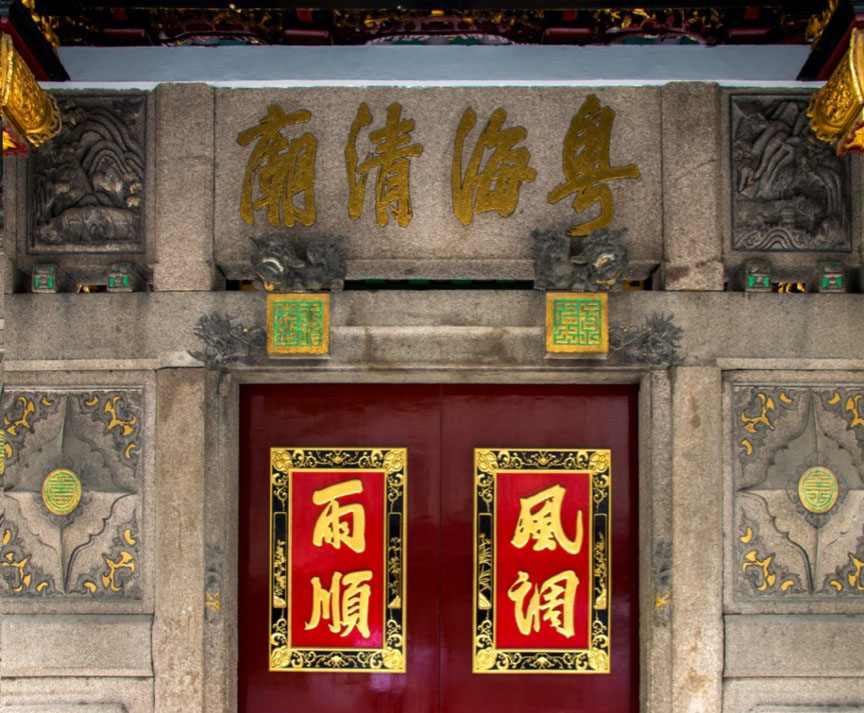

• Door frame: Large proportion stone door frame, typically paired with stone door seals above the doorframe.

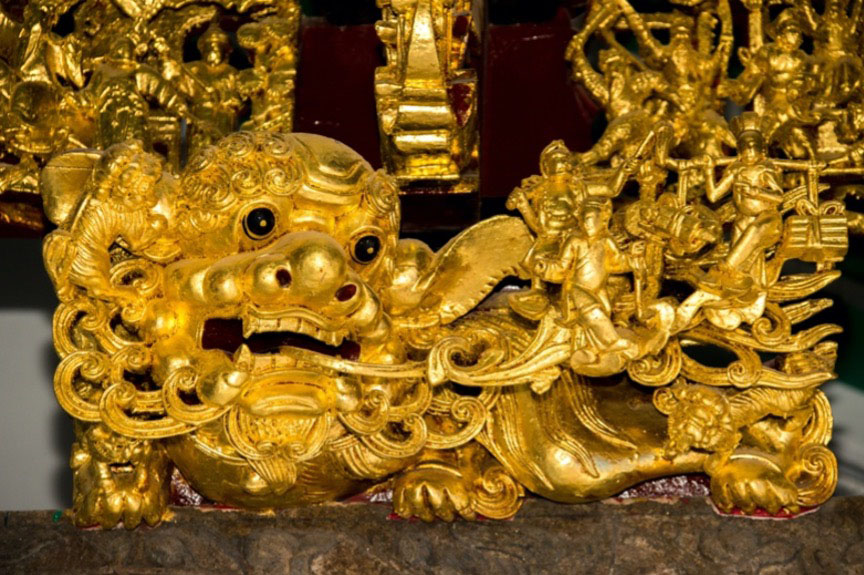

• Timber carving: High relief Teochew carving with gold-gilding and lacquer.

Reference

Book

1.  李哲揚：《潮州傳統建築大木構架》（中國: 廣東人民出版社, 2009年）。

2. 李煜群：《潮州傳統建築格局與吉祥圖案釋義》（中國: 花城出版社, 2015年）。

3. 楊堅平：《潮州木雕》（中國: 嶺南美術出版社, 2008年）。

4. 潮州市建設局：《潮州古建築》（中國: 中國建築工業出版社, 2008年）。

5. Yeo, Kang Shua, Divine Custody: A History of Singapore’s Oldest Teochew Temple, Singapore: NUS Press, 2021.
